FusePoint Documents with Filters Documentation

Type: webpart

Document with Filter

Overview

The FusePoint Documents with Filters webpart is a powerful tool for enhancing document management and accessibility within SharePoint. This webpart allows users to select one or multiple document libraries or lists, manage displayed columns via a customizable collection, and efficiently navigate through documents with dynamic filters. Key features include adjustable pagination, customizable items per page, sorting options, and a user-friendly "Clear All" filter option.


New Feature: Multi-List Aggregation

In scenarios where multiple SharePoint lists are used, FusePoint Documents with Filters now supports aggregating items from multiple selected lists into a single display.

  • Admins can configure multiple lists in the web part properties
  • Users on the frontend can select which list(s) to view
  • Displayed columns are shared across lists; if a column doesn’t exist in a list, it appears as empty
  • Filters and sorting apply to the aggregated data set

Example Scenario:

Assume 3 lists configured with these columns:

  • List 1: Title, Description, Category
  • List 2: Title, Description, Region
  • List 3: Title, Region, User, Status

Selected columns to display: Title, Description, Region

  • Title will display values for all items
  • Description will show only for List 1 and List 2 items
  • Region will show only for List 2 and List 3 items

Features

  • Dynamic Filtering: Filter documents by multiple attributes with 'Select All' and 'Clear All' options
  • Multi-List Aggregation: Combine data from multiple lists into one view
  • Customizable Display: Two-section layout with filter panel and document display area
  • Fluent UI Integration: Consistent SharePoint design using DetailsList component
  • Configurable Properties: Control search bar visibility, list selection, and default sorting
  • Performance Optimized: Designed for libraries under 100 documents
  • Enhanced UX: Customizable download column and JSON Column Formatter support
  • Security: Uses SP REST API with system column handling
  • Styling Options: CSS customization through web properties

How to Use

Adding the Web Part

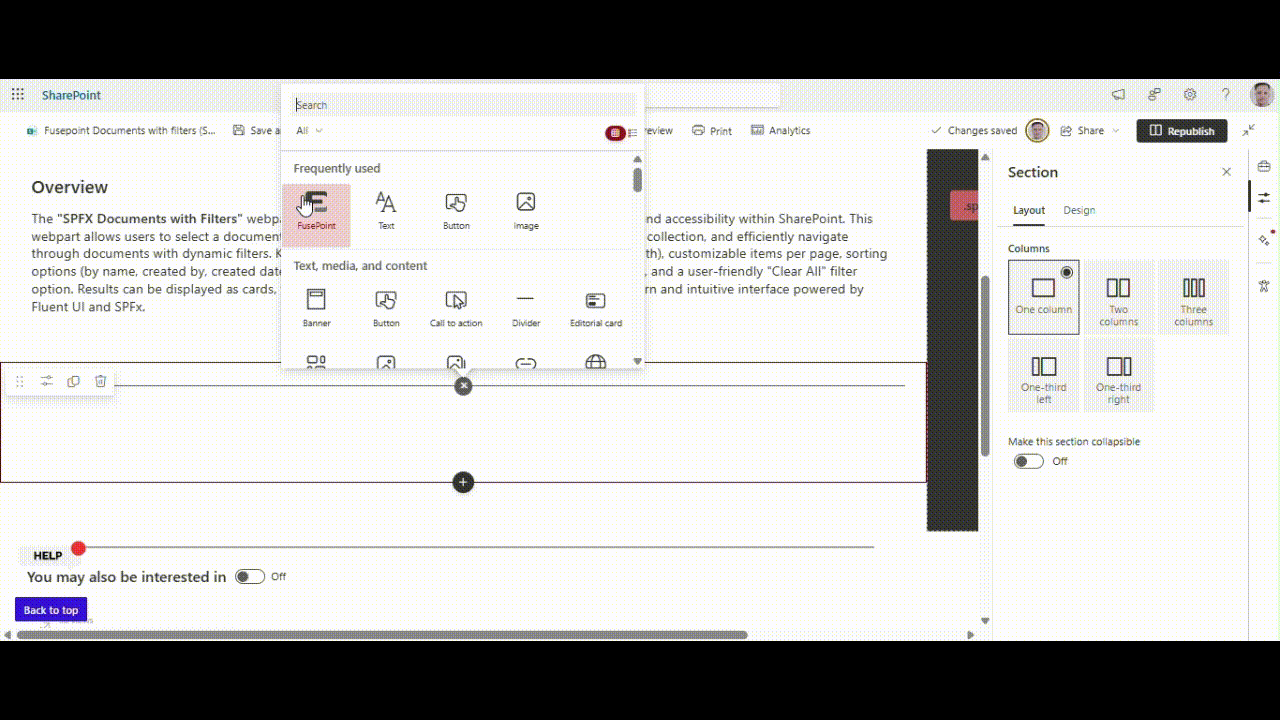

  1. Navigate to your SharePoint page in edit mode
  2. Select "Add a Web Part" from the ribbon
  3. Choose FusePoint Documents with Filters from the web part gallery

Configuring the Web Part

  1. Select one or more SharePoint lists to include
  2. Set up shared columns and filterable fields
  3. Configure default sorting and pagination settings
  4. Adjust styling options as needed

Using the Filters

  1. Use the left panel to apply multiple filters
  2. Combine text, number, and choice field filters
  3. Reset filters with the 'Clear All' option
  4. Sort results by various document attributes

Customization Options

  • List Selection: Select multiple lists to aggregate in the configuration panel
  • Filter Selection: Choose which fields appear as filters (shared columns only)
  • Display Settings: Configure card view or list view options
  • Pagination Control: Set items per page and pagination location
  • Column Formatting: Customize column displays using JSON
  • CSS Overrides: Apply custom styling through CSS properties

Benefits

  • Cross-List Document Discovery: Aggregated search and filtering over multiple lists
  • Consistent User Experience: Fluent UI ensures SharePoint-native interface
  • Flexible Configuration: Adapts to varying list schemas with graceful fallbacks
  • Performance Conscious: Optimized for libraries under 100 documents
  • Enterprise Ready: Secure and stable for business environments

Conclusion

The FusePoint Documents with Filters web part now supports multi-list document aggregation, offering greater flexibility for enterprise use cases. This enhancement simplifies document discovery across multiple sources, making it easier for users to navigate complex data structures while maintaining the performance and design consistency SharePoint users expect.
